Wire Mesh Fence/3D Fence Panel
Panles

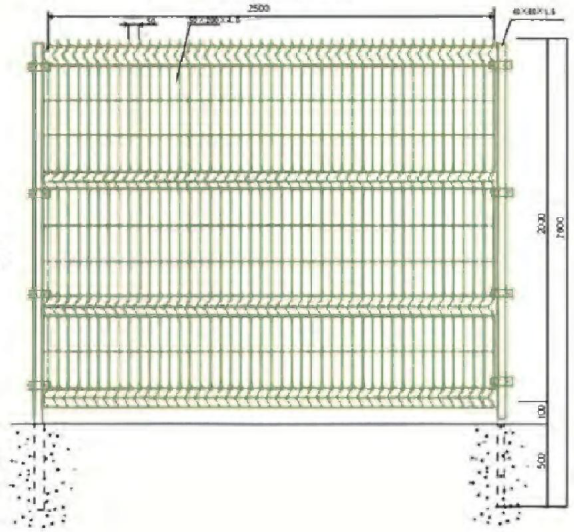

The 3D fence panels are 2500mm wide and heights range from 630 to 2430mm.
The panels have vertical barbs of 30mm on the top of the panel(panels are reversible if required - barbs at top or at bottom)
Mesh sizes of 3D fence panel are 200mmx50mm, and 100mmx 50mm for the beam sections.
Heavy wires , with a diameter of 4mm or 5mm guarantee a high leavel of rigidity .
Surface treatment
Galvanized the PVC painted
Galvanized the PVC coated
Hot-dipped galvanized then PVC painted
Hot-dipped galvanized then PVC coated
Hot-dipped galvanized
wire mesh fence

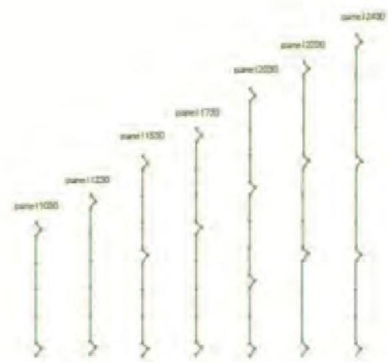

Panel Height | Panel Length | Wire Diameter | Mesh Size | Folds No. |
0.63mm | 2.0mm 2.5mm 3.0mm | Gal+PVC Painted 3.85mm/4.0mm 4.85mm/5.0mm Gal+PVC Painted 3.0mm/4.0mm 4.0mm/5.0mm | 50*200mm 55*200mm 50*150mm 55*100mm | 2 |
| 1.03mm | 2 | |||
| 1.23mm | 2 | |||
| 1.5mm | 3 | |||
| 1.53mm | 3 | |||
| 1.7mm | 3 | |||
| 1.73mm | 3 | |||
| 1.8mm | 4 | |||
| 1.83mm | 4 | |||
| 2.0mm | 4 | |||
| 2.03mm | 4 | |||
| 2.43mm | 4 |

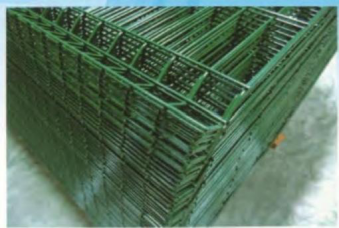

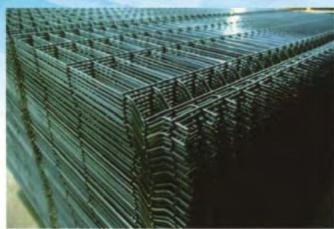

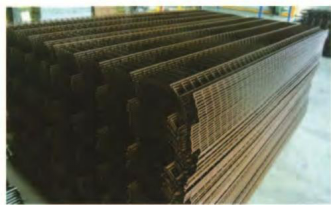

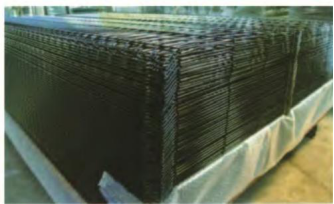

Colors
Standard colors : Green RAL6005, Balck RAL9005, Gray RAL 7016, Brown RAL 8014 Other colors are available on request.

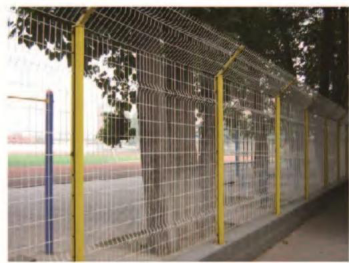

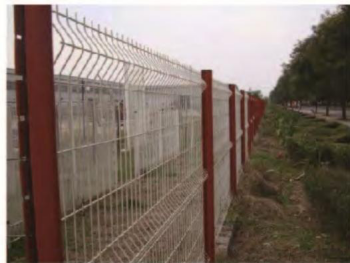

Applications
3D fence panel system is suitable for most applications where generals site demarcation is required.
Typical examples are used in schools,public areas,commercial businesses and retail outlets.
