Doble Wire Fence
Doble Wire Fence

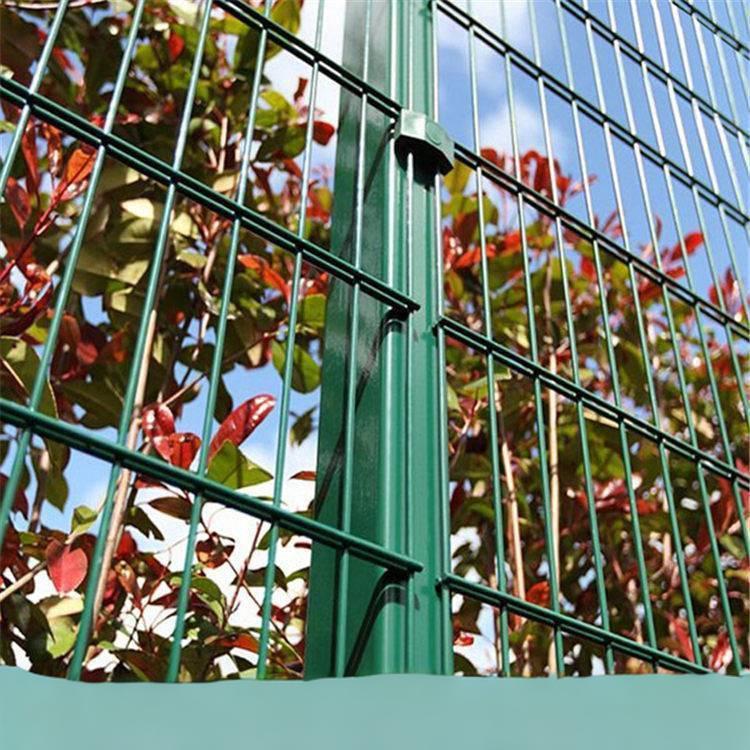

Doble Wire Fence is a premium fencing system composed of heavy-duty welded mesh panels, where two horizontal steel wires sandwich and weld vertical wires in between. These panels are paired with dedicated guardrail posts to form a robust enclosure.

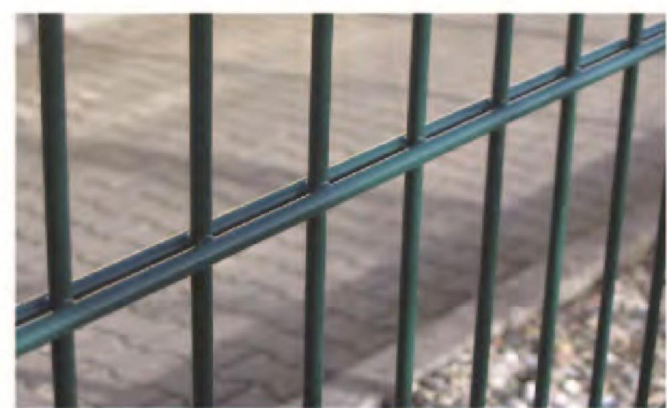

Uses thicker gauge wires and a double-sided horizontal wire configuration to achieve enhanced rigidity compared to standard welded mesh panels
Primary Applications:
This fencing system is widely utilized for perimeter security and safety management across diverse settings, including:
Public Infrastructure: Airports, parking facilities, public parks, playgrounds, and amusement parks.
Education & Institutions: Schools, nurseries, corporate campuses, universities, and research facilities.
Commercial & Industrial Zones: Industrial sites, commercial properties, manufacturing plants, and housing projects.
Recreational Venues: Sporting fields, tennis courts, swimming pools, multi-game areas, and sports complexes.
Specialized Facilities: Healthcare centers, government compounds, and high-security zones.
| Double Wire Fence | |||||
| HeightxWidth panel(mm) | Mesh Size | Wire Diameter | Post Height (mm) | ||
| (mm) | Wire Dia (mm) | Wire Dia (mm) | Wire Dia (mm) | ||
| 630×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 1100 |
| 830x×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 1300 |
| 1030x2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 1500 |
| 1230×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 1700 |
| 1430×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 1900 |
| 1630×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 2100 |
| 1830×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 2400 |
| 2030×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 2600 |
| 2230×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 2800 |
| 2430×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 3000 |
| 1.Surface treatmentwe can do electric galvanized then PVC painted, hot dipped galvanized and PVC coated,PVC coated without galvanized. The customer can also choose PVC painted | |||||
| 2.Other heights and length on request. | |||||
